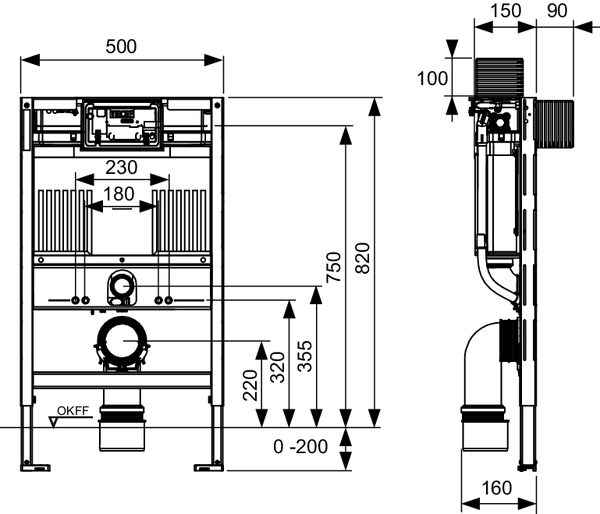

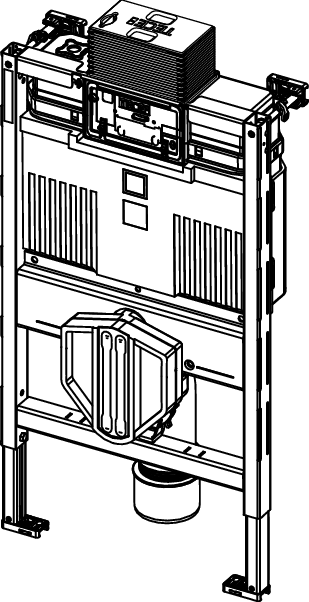

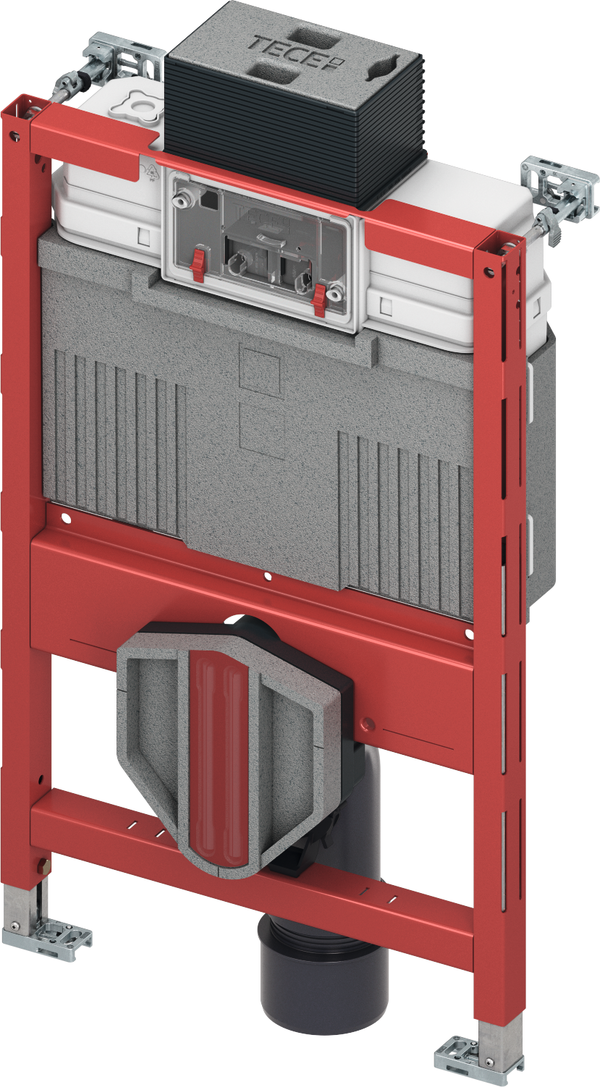

TECE profile toilet module with plain cistern, height 820 mm. - 9300301

TECEprofil WC module with universal cistern, installation height 820 mm

WC module including "easy fit" flush plate mounting and conduit for connecting electronic shower toilets. For mounting on TECEprofil profile pipes or as a wall-mounted or corner module.

Universal cistern for front or top actuation:

• Safety tank made of impact-resistant plastic, tested according to EN 14055
• The cistern is completely pre-assembled and sealed.
• Cistern connection with external thread R 1/2" sideways, compatible with quick adapters
• 10 liter tank capacity; 6 liter preset standard rinse volume; 4.5/7.5/9 liter rinse volume adjustable at any time; 3 liter partial rinse with dual-flush technology; residual volume usable for immediate cleaning rinse.
• Condensation-insulated
• for TECE flush plates and toilet fittings
• usable as a single or dual flush cistern
• "easy fit" actuator plate mounting
• Installation tunnel for service opening, can be shortened without tools
• Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109

Module frame:

• self-supporting, powder-coated
• two retaining bolts and nuts M12
• WC drain bend DN 90 with transition adapter DN 90/100 made of PP
• Transition adapter also suitable for horizontal installation
• WC connection set DN 90
• WC connection box including rough construction protection and conduit for universal shower toilet connection (check position), with junction box and cover for transformer.
